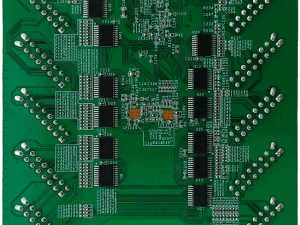

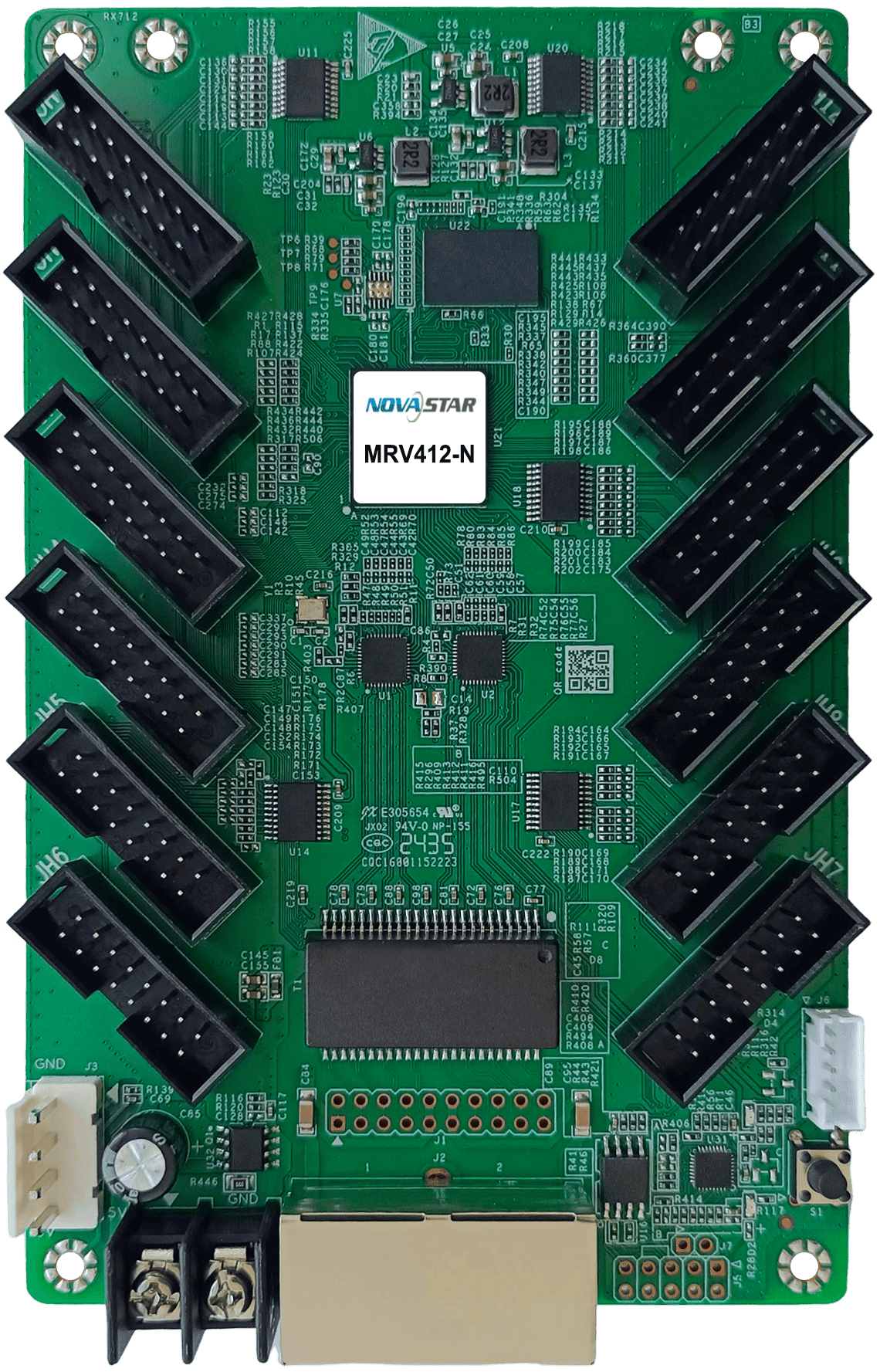

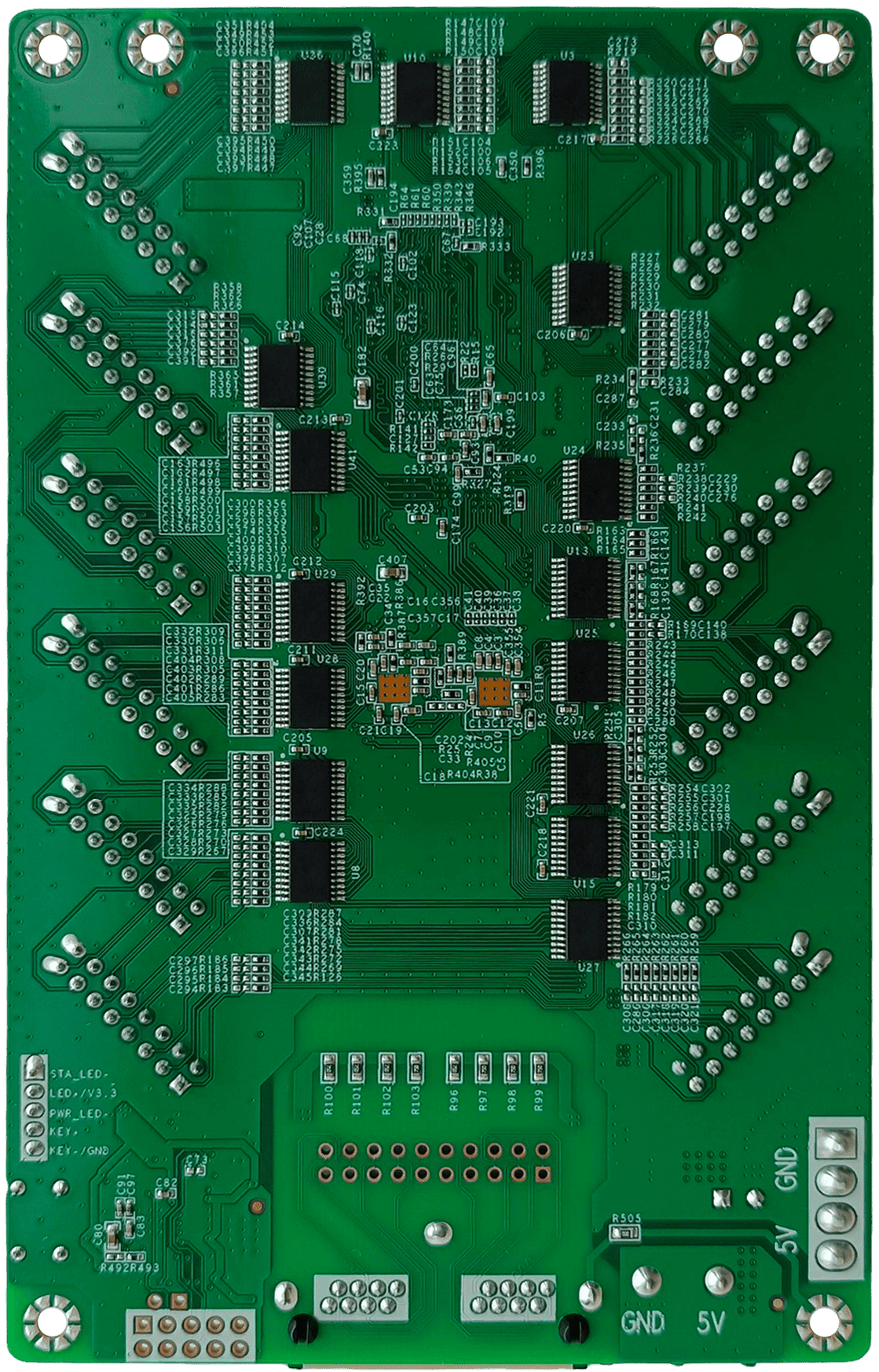

Receiving Card MRV412-N

The MRV412-N is a general receiving card developed by NovaStar Tech Co., Ltd. Supporting various functions such as Color Management, 18bit+, Pixel Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch Adjustment, Low Latency, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation, the MRV412-N can significantly improve the display effect and user experience.

The MRV412-N uses 12 standard HUB75E connectors for communication. It supports up to 24 groups of parallel RGB data and is suitable for various on-site setups.

When working with 8bit video sources, the maximum load capacity per card is:

512×512@60Hz (PWM driver IC)
512×384@60Hz (common driver IC)
