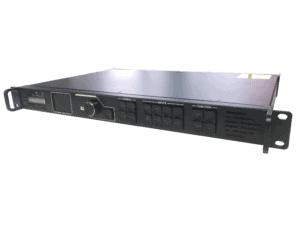

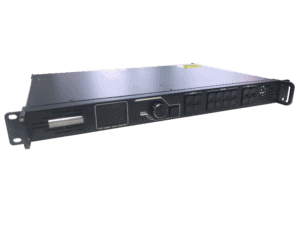

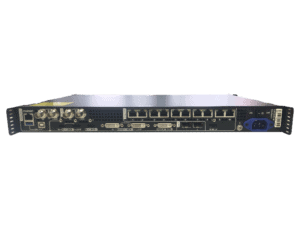

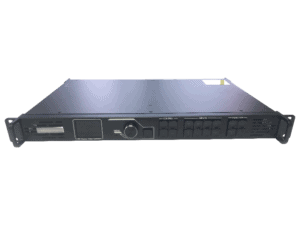

Novastar VX1000 Processor Scaler Switcher
| VX1000/VX600/VX400 Comparison | |||
| Device Model | VX1000 | VX600 | VX400 |
| Loading Capacity | 6.5 million pixels | 3.9 million pixels | 2.6 million pixels |
| Max Width & Height | Max width: 10240 pixels Max height: 8192 pixels |
||
| Layers | 3x 4K×1K | 3x 2K×1K | 2x 2K×1K |
| Input Connectors | 1x 3G-SDI 2x HDMI 1.4 2x DVI（HDMI 1.4） 1x OPT1 |
1x 3G-SDI 2x HDMI 1.3 1x DVI 1x OPT1 |
1x 3G-SDI 2x HDMI 1.3 1x DVI 1x OPT1 |
| Output Connectors | 10x Ethernet Ports 1x HDMI1.3 1x HDMI1.4 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT |
6x Ethernet Ports 1x HDMI1.3 1x HDMI1.3 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT |
4x Ethernet Ports 1x HDMI1.3 1x HDMI1.3 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT |
| Presets | 10 | 10 | 10 |
| Control Connectors | 1x Ethernet Port 2x USB (input & output) 1x GENLOCK (IN & LOOP) |
1x Ethernet Port 2x USB (input & output) 1x GENLOCK (IN & LOOP) |
1x Ethernet Port 2x USB (input & output) 1x Light Sensor |
